MOPA Fiber Laser vs. Other Fiber Laser: Features and Benefits

MOPA Fiber Laser vs. Other Fiber Laser: Features and Benefits

What is a MOPA fiber laser? It’s a common question that many beginner engravers often wonder about. MOPA Fiber Laser and other fiber Laser machines are both fiber laser marking machines, but they have some differences in laser structure, pulse width, frequency, power, and application scenes.

In this article, we will walk you through the differences between MOPA laser and standard fiber laser. If you are interested in learning more about MOPA fiber laser basics, and the best MOPA laser engravers, MOPA fiber lasers 101 would be your ultimate guide.

I. What is a MOPA fiber laser?

1. Definition:

A MOPA fiber laser (Master Oscillator Power Amplifier) is a type of laser technology that separates the laser pulse generation and amplification into two components: a master oscillator and a power amplifier.

2. How MOPA works:

The master oscillator generates the laser pulse, and the power amplifier amplifies it. This unique design allows for fine control over the pulse duration and frequency, enabling MOPA lasers to adjust the laser's intensity and energy for different materials and applications. This flexibility results in highly accurate and customizable engraving and marking capabilities.

3. Applications:

MOPA fiber lasers are used for color marking, fine engraving, and deep marking on various materials, including metals and plastics. Their ability to control pulse parameters makes them ideal for high-precision applications in industries like electronics, aerospace, and medical devices, as well as for working with sensitive materials without causing thermal damage.

An image of MOPA fiber laser's material compatibility

II. What’s the difference between MOPA Fiber Laser and Other Fiber Laser?

1. Laser Structure

MOPA Fiber Laser:

Uses MOPA technology, which separates the laser pulse generation and amplification into two components: a master oscillator to generate the initial pulse and a power amplifier to boost its energy.

Other Fiber Laser:

Uses Q-switching technology, where both the pulse generation and amplification occur within the same system, combining a semiconductor laser and a fiber amplifier.

2. Pulse Width

MOPA Fiber Laser:

The pulse width of a MOPA fiber laser is adjustable, ranging from 2 to 200 ns, allowing for precise control over the laser’s energy and intensity for different materials and applications.

Other Fiber Laser:

The pulse width of a standard fiber laser is generally fixed, typically ranging between 100 to 200 ns, which offers less flexibility but is suitable for high-speed tasks.

3.Frequency

MOPA Fiber Laser:

The frequency of a MOPA fiber laser is adjustable, ranging from 1 kHz to 4000 kHz. This wide range offers more versatility, enabling users to fine-tune the laser’s output for different materials and applications. The ability to adjust frequency is particularly valuable for tasks requiring high precision, like color marking or fine engraving on metals and plastics.

Other Fiber Laser:

The frequency of a standard fiber laser is typically fixed, ranging from 20 kHz to 60 kHz. This offers less flexibility and limits its ability to handle more intricate applications, such as achieving different engraving effects or marking colors.

4.Color Marking

MOPA Fiber Laser:

MOPA fiber lasers offer exceptional marking capabilities, including color marking and high-contrast engravings on materials such as stainless steel, anodized aluminum, and plastics. The ability to adjust pulse width and frequency allows for vibrant, intricate designs that are ideal for electronics and medical device marking. Moreover, color marks produced by MOPA lasers are durable, maintaining their bright colors over time without fading or discoloring.

An image of Color Marking

Other Fiber Laser:

While standard fiber lasers are great for monochrome markings and high-speed engraving, they cannot achieve color markings like MOPA lasers. The color marks produced by standard fiber lasers tend to fade or discolor with time, making them less reliable for applications requiring long-lasting, high-quality markings. These lasers are better suited for general, bulk engraving tasks like serial numbers and logos on metal surfaces.

5. Material Compatibility

MOPA Fiber Laser:

MOPA fiber lasers excel in processing a wide range of materials, including reflective metals (like copper, brass, and aluminum) and sensitive materials (such as plastics and ceramics). The adjustable pulse width and frequency allow MOPA lasers to work with delicate materials without causing thermal damage, making them ideal for industries requiring high precision, like electronics, aerospace, and medical devices. MOPA lasers also shine in color marking on metals and plastics, offering versatility in marking intricate designs.

Other Fiber Laser:

Standard fiber lasers are primarily designed for metal marking, especially on ferrous metals (such as steel) and non-ferrous metals. While they can mark various materials, they are not as effective on reflective metals and plastics. Their ability to handle delicate or heat-sensitive materials is more limited compared to MOPA lasers. Standard fiber lasers are generally better suited for bulk metal engraving and applications that do not require high levels of material versatility.


MOPA Fiber Laser
Features MOPA Fiber Laser Common Fiber Laser
Core Structure Separate Master Oscillator + Power Amplifier Integrated resonator design
Pulse Duration Adjustable (2~500ns) Fixed (~100-200ns)
Pulse Frequency Wider range (1-4000 kHz) Narrower range (1-2000 kHz)
Material Compatibility
  • Non-ferrous metals (Cu, Al, Brass)
  • Plastics
  • Anodized aluminum
  • Color marking on metals
  • Ferrous metals (steel)
  • Limited non-ferrous
  • Limited color marking
Marking Quality
  • Burr-free edges
  • Color marking capability
  • High-contrast on dark metals
  • Potential thermal damage
  • Monochrome only
  • Burrs on thin materials
Application Flexibility High (precise control for thin/delicate materials) Limited (best for deep engraving)
Cost 20-50% higher Lower initial cost
Best for
  • Aerospace components
  • Electronics marking
  • Medical devices
  • Color artwork
  • Industrial part numbering
  • Tool engraving
  • High-volume metal tagging

III. Key Benefits of MOPA Fiber Laser

1. Metal Material Marking

MOPA fiber lasers offer enhanced precision and flexibility in metal marking. They can adjust pulse width and frequency, making them ideal for fine engraving such as QR codes and barcodes. Additionally, MOPA lasers excel at deep marking, providing high-contrast black effects and vibrant color marking on metals, including stainless steel and anodized aluminum, which standard fiber lasers cannot achieve.

2. Non-metallic Material Marking

MOPA lasers shine when marking non-metallic materials like plastics, rubber, and wood. Their ability to control pulse duration and frequency allows for precise, deeper, and long-lasting markings without damaging sensitive materials. This makes them perfect for applications that demand high accuracy and durability on delicate surfaces.

3. Versatility and Application

MOPA fiber lasers are highly versatile, offering benefits in industries like electronics, aerospace, and medical devices.

Fine marking: QR codes, barcodes, electronic components, medical devices, etc.
Deep marking: metal parts, metal signs, building decorations, etc.
Black marking: mobile phones, computers, home appliances, etc.

IV. Conclusion

MOPA fiber lasers offer greater flexibility than standard fiber lasers, with adjustable pulse width and frequency, making them ideal for precise color marking, fine engraving, and working with a variety of materials.

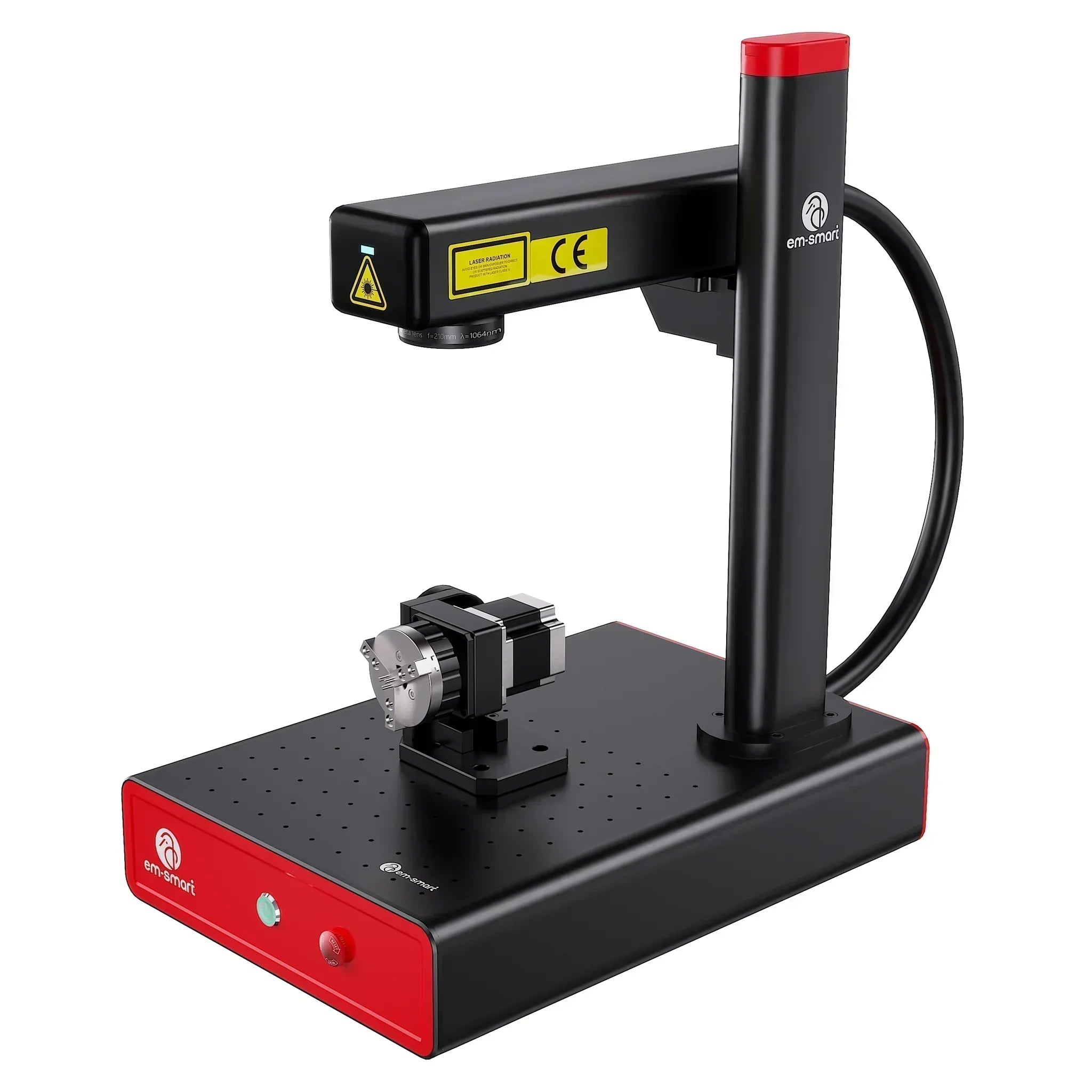

EM-Smart Mopa 20/30/60R - JPT Fiber Laser Engraver

Fiber laser engraving machine for coloring stainless steel, aluminum, silver, gold and others metals. Portable and affordable.

Learn More >

If you need high precision or are working with delicate materials, the MOPA fiber laser is your best choice. EM-Smart provides high-performance MOPA fiber laser solutions tailored for diverse engraving needs. Explore EM-Smart products today to enhance your engraving capabilities!
